M5Stack Cap LoRa 1262 for Cardputer Adv (SX1262, ATGM336H)

M5Stack Cap LoRa 1262 for Cardputer Adv (SX1262, ATGM336H)

17,27 €

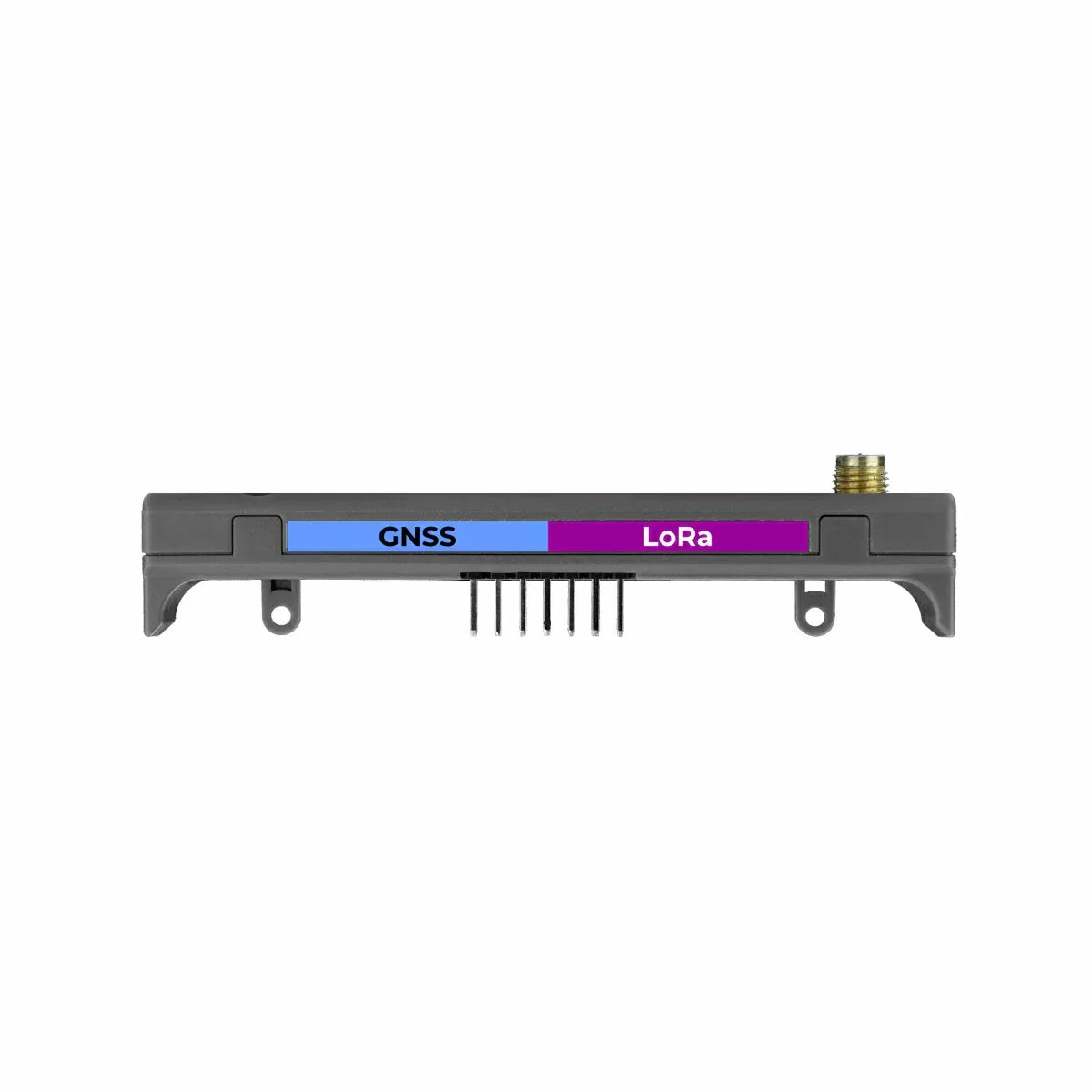

Cap LoRa-1262 is a high-performance communication expansion module featuring LoRa wireless communication and GNSS global positioning, designed to work with Cardputer-Adv. The module is equipped with an HY2.0-4P expansion interface, enabling stable connection and functional expansion with the host controller. The LoRa module is based on the SX1262 chip solution and comes with an external SMA antenna, offering stronger anti-interference performance and long-range communication capability. It supports the 868MHz ~ 923MHz frequency band, providing long-distance, low-power wireless links for IoT scenarios . The GPS module adopts a solution based on the AT6668 chip and integrates a built-in ceramic antenna to deliver accurate and reliable satellite positioning services. It supports multi-band, multi-mode GNSS signal reception, enabling signals from GPS, BD2, BD3, GLONASS, GALILEO, and QZSS. Even in weak signal environments, it can quickly obtain precise location information. Perfect for remote data acquisition , smart cities , smart homes , vehicle navigation , and IoT device localization .



Features

  • Integrates LoRa modulation technology and GNSS global positioning system
  • Operating frequency: 868 ~ 923 MHz
  • Supports FSK, GFSK, MSK, GMSK, LoRa, and OOK modulation modes
  • LoRa receiving sensitivity: down to -147 dBm (LoRa low data rate mode)
  • LoRa maximum transmission power: +20 dBm
  • External SMA antenna interface for LoRa, built-in ceramic antenna for GPS
  • Positioning supports multiple satellite navigation systems (GPS / QZSS / BD2 / BD3 / GAL / GLO)
  • Multi-frequency and multi-system reception
  • HY2.0-4P expansion interface
  • Development Platform:
    • Arduino
    • UiFlow2



Specifications

Specification Parameter
LoRa Module SX1262
LoRa Frequency Range 868 ~ 923 MHz
LoRa Programmable Bitrate Up to 300kbps
LoRa Communication Interface SPI
LoRa Antenna Size 108 x 9.3mm, SMA interface, Gain 3dBi
LoRa Transmit Power +22dBm
LoRa Receiver Sensitivity -147dBm
LoRa Operating Current DC 5V@163.4mA
Supported Modulation Modes FSK / GFSK / MSK / LoRa / OOK
GPS Module ATGM336H-6N@AT6668
GPS Communication Interface UART, 115200bps@8N1
Supported GNSS Systems GPS / QZSS / BD2 / BD3 / GAL / GLO
Frequency Bands BDS: B1I+B1C
GPS/QZSS/SBAS: L1
GALILEO: E1
GLONASS: R1
GPS Channels 50 Channels
GPS Positioning Accuracy <1.5m (CEP50)
GPS Update Rate Up to 10Hz
GPS Protocol NMEA 0183 4.1
GPS Sensitivity Tracking: -162dBm
Acquisition: -160dBm
Cold Start: -148dBm
GPS Time to First Fix Cold Start: 23s
Hot Start: 1s
Power Consumption 33.1mA
Product Size 84.0 x 24.0 x 15.2mm
Product Weight 34.0g
Package Size 170.0 x 120.0 x 17.0mm
Gross Weight 48.6g



Product Comparison

Compare Feature Cap LoRa-1262 Cap LoRa868
HY2.0-4P Expansion Interface Yes No
Module Stamp LoRa-1262, smaller size Legacy version, standard size



Applications

  • Remote data acquisition
  • Smart cities
  • Smart homes
  • Vehicle positioning and navigation
  • IoT device positioning



Datasheets



Includes
